special equipment for oilfield drilling and production - air compressor
Instrument Type And PLC Control Air Compressor

special equipment for oilfield drilling and production - air compressor
cold start air compressor

special equipment for oilfield drilling and production - air compressor
explosion-proof water-cooled inflator

special equipment for oilfield drilling and production - air compressor
explosion-proof air-cooled inflator

special equipment for oilfield drilling and production - air compressor
non-explosion-proof water-cooled inflator

special equipment for oilfield drilling and production
pneumatic system skid mounting, dog house, driller house

special equipment for oilfield drilling and production
spring reset safety valve

special equipment for oilfield drilling and production-import derrick escape and fall prevention
german Mitmann product series

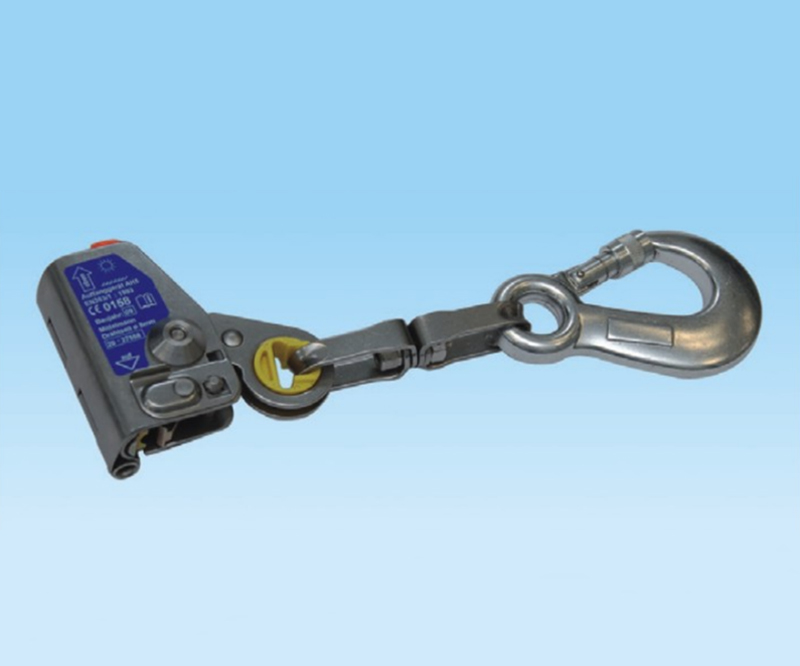

Germany Midman Derrick Escape Device RG10D
?RG10D 55m two-story platform escape device configuration table
No. Note Specification Number Tip
1 Descent RG10D 55M 1 pcs Including Ф5×55m high-strength galvanized up and down rope
2 Guide rope galvanized steel wire rope Ф10×55M 2 pcs High-strength galvanized steel wire rope
3 Suspension body 1 pcs Protect the descender and connect the derrick and guide rope
4 Manual controller ABS12 2 pcs Special copper alloy stainless steel material
5 Fixed rope (galvanized steel wire rope) Ф12×2M 1 pcs Maximum tensile strength: 5.2T
6 High strength bolt with M24 nut M24X150 2 pcs Ground anchor supporting
7 M16 stainless steel flange screws (circle to circle) M16 2 pcs Adjust the tightness of the guide rope
8 510-10 stainless steel wire rope clamp (with lock nut) 510-10 6 pcs Fixed guide rope
9 840-10 collar (stainless steel U-shaped) 840-10 2 pcs Protection guide rope
10 Ground anchor 1.2M 2 pcs Fixed ground and guide rope
11 Multifunctional safety belt (Optional) MKA21 1 pcs Comply with European EN361/EN358 standards



??RG10D 75m two-story platform escape device configuration table
No. Note Specification Number Tip
1 Descent RG10D 75M 1 pcs Including Ф5×75m high-strength galvanized up and down rope
2 Guide rope galvanized steel wire rope Ф10×75M 2 pcs High-strength galvanized steel wire rope
3 Suspension body 1 pcs Protect the descender and connect the derrick and guide rope
4 Manual controller ABS12 2 pcs Special copper alloy stainless steel material
5 Fixed rope (galvanized steel wire rope) Ф12×2M 1 pcs Maximum tensile strength: 5.2T
6 High strength bolt with M24 nut M24X150 2 pcs Ground anchor supporting
7 M16 stainless steel flange screws (circle to circle) M16 2 pcs Adjust the tightness of the guide rope
8 510-10 stainless steel wire rope clamp (with lock nut) 510-10 6 pcs Fixed guide rope
9 840-10 collar (stainless steel U-shaped) 840-10 2 pcs Protection guide rope
10 Ground anchor 1.2M 2 pcs Fixed ground and guide rope
11 Multifunctional safety belt (Optional) MKA21 1 pcs Comply with European EN361/EN358 standards

special equipment for oilfield drilling and production-import derrick escape and fall prevention
honeywell product series

special equipment for oilfield drilling and production - import derrick escape and fall prevention
3M product series

special equipment for oilfield drilling and production
winch series
